KBK Stainless Steel Suspension Crane for Clean Equipment

11 Oct 2023 Products > Combined Crane

KBK stainless steel suspension crane is a lightweight crane system mainly used for material handling and installation in a clean room dust-free environment. It can meet the requirements of clean equipment because its rails, trolleys, spreaders and other components are made of stainless steel or electroless nickel plating, which can prevent tiny flakes from flying or static electricity.

The working principle of the KBK stainless steel suspension crane is: when materials need to be transported or installed, first connect the hook to the material, then control the spreader to lift the material through the operation button or remote control, and then control the car to move to target position, and finally control the spreader to lower the material through the operation button or remote control to complete the transportation or installation task.

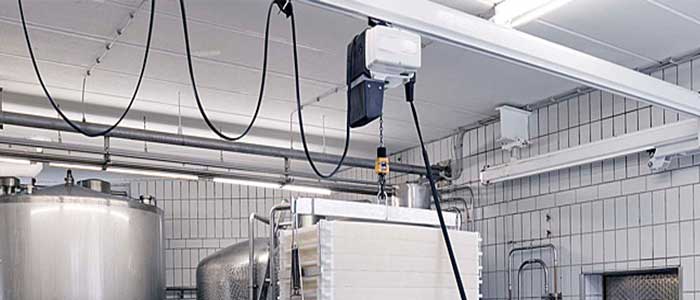

KBK stainless steel suspension crane

Composition structure:

  ● Track: It is the main supporting structure of the crane. It is made of stainless steel and has the advantages of corrosion resistance, high temperature resistance, and antistatic. It is suitable for use in occasions that require a high degree of cleanliness. The rails are divided into straight rails, curved rails, turning rails and other types, which can be flexibly combined according to the shape and size of the work area.

  ● Trolley: It is the moving part of the crane and consists of driving device, traveling device, control device, etc. The trolley can move horizontally on the track to realize lateral transportation of materials. There are two types of trolleys: manual trolleys and electric trolleys. Manual trolleys require manual pushing and pulling, while electric trolleys can be operated by buttons or remote controls.

  ● Spreader: It is the lifting component of the crane, consisting of hooks, slings, drums, motors, etc. The spreader can move vertically under the trolley to lift materials. Spreaders are divided into two types: manual spreaders and electric spreaders. Manual spreaders need to be pulled manually, while electric spreaders can be operated by buttons or remote controls.

Features:

  ● The track material is stainless steel, which has the advantages of corrosion resistance, high temperature resistance, antistatic, etc., and is suitable for use in occasions that require a high degree of cleanliness.

  ● The lifting weight generally does not exceed 2000kg, the span can reach 7 meters, and the lifting height can be adjusted as needed.

  ● The crane is composed of standard modules, which are easy to install and can be flexibly arranged according to the shape and size of the work area.

  ● The crane can be driven manually or electrically, with simple operation, smooth operation and anti-sway function.

  ● It can save energy consumption, reduce operating costs, and has no pollution emissions.
